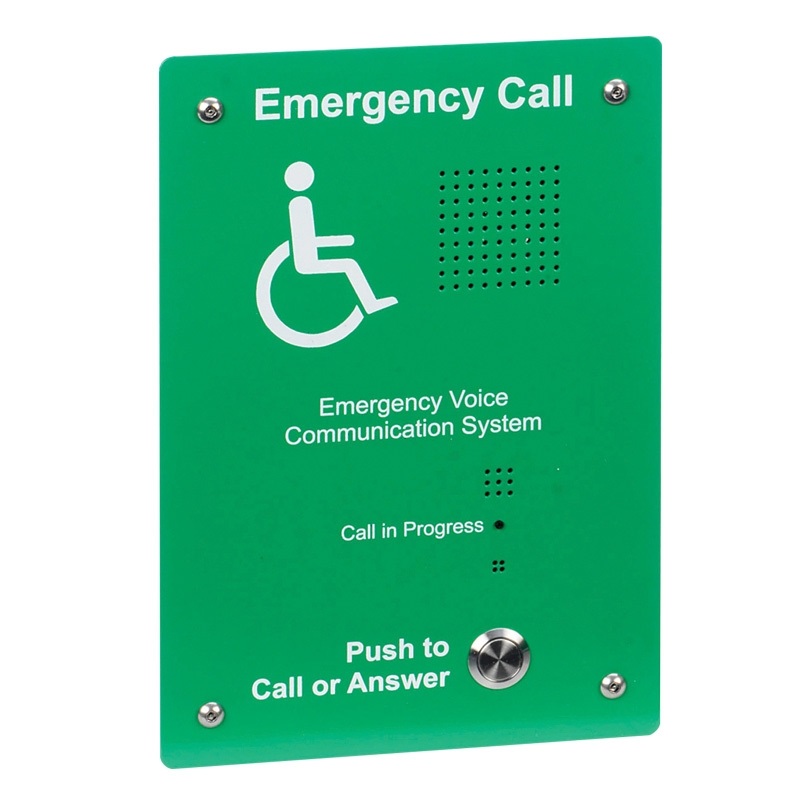

C-Tec EVC302GF Green Disabled Refuge Outstation flush

Name: C-Tec EVC302GF Green Disabled Refuge Outstation flush
SKU: fs1118006
Availability: InStock

AED 1,378.65 VAT included

Compare

Product Code : fs1118006 Seller: Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description

C-Tec EVC302GF Green Disabled Refuge Outstation flush An attractive Type B disabled refuge outstation, Stylishly finished in tough, durable green steel. Suitable for use with C-TEC’s SigTEL disabled refuge/emergency voice communication system. Allows anyone located in a disabled refuge area to communicate with a SigTEL Master Controller at the touch of a button (and vice versa). It offers true duplex speech Features a ‘Push to Call or Answer’ button, a ‘Call in Progress’ LED, buzzer, microphone, and loudspeaker. Includes connections for an optional induction loop system and a general-purpose open collector output that closes on activation of the unit. Meets and exceeds the requirements of BS 5839-9 when correctly installed

Features

Includes connections for an optional induction loop system and a general-purpose open collectoroutput that closes on activation of the unit.
Allows anyone located in a disabled refuge area to communicate with a SigTEL Master Controller at the touch of a button (and vice versa)
Allows anyone located in a disabled refuge area to communicate with a SigTEL Master Controller at the touch of a button (and vice versa)
Suitable for use with C-TEC's SigTEL disabled refuge / emergency voice communication system
Meets and exceeds the requirements of BS 5839-9 when correctly installed.
An attractive Type B disabled refuge outstation.
Stylishly finished in tough, durable green steel.
Offers true duplex speech.

Specifications

Product: Green Disabled Refuge Outstation flush
Brand: C-Tec
Model: EVC302GF
Supply/operating voltage: 11V DC derived from a compatible SigTEL Master Controller (drops to 6 V DC when in use).
Open collector outputs: O/P +Ve & O/P -Ve (closes when outstation is active, typically used to trigger a third party CCTV camera, opto-isolated, normally open, max. 24 V DC, 3 mA)
Indicators: Red call in progress LED
Controls: External 'Push to Call or Answer' button (Off Hook); Internal Loudspeaker volume control; Engineer’s On Hook and Off Hook pins
Expansion connections: AFILS +Ve & AFILS -Ve (typically connected to the line-level input of an optional induction loop amplifier): Off-Hook and -Ve (can be optionally connected to an NC951 accessible toilet alarm kit (see instructions for details).
Product dimensions (mm): 175 W x 250 H x 53 D mm. Hole required for flush mounting: 156 W x 232 H x 51mm D approx (no brezel required).
Approvals/certifications: Facilitates compliance with BS5839-9 when correctly installed.
