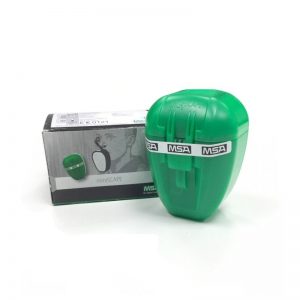

MSA 10038560 MiniScape Respirator in Plastic Housing
AED 262.50 VAT included
BT Cables C1013-2Core 18AWG 305m Screened Grey Cable
AED 624.75 VAT included
BT Cables C1013-2Core 18AWG 305m With Screened Multi-Conductor cable suitable for Audio, Control, Instrumentation and Building Management Systems (BMS). Flame-Retardant Polyvinyl Chloride (PVC) Sheath Material with Grey Color.
Description
BT Cables C101-2Core 18AWG 305m With Screened Multi-Conductor cable suitable for Audio, Control, Instrumentation and Building Management Systems (BMS). Flame-Retardant Polyvinyl Chloride (PVC) Sheath Material with Grey Color.
Features
- Flame-Retardant Polyvinyl Chloride (PVC) Sheath Material with Grey Color.
- 18AWG 305m With Screened Multi-Conductor cable suitable
Specifications
- No of cores x 18AWG (7 x 26): 2
- Nom. Diameter Conductor: 1.2
- Nom. Radial Thickness Insulation: 0.2
- Nom. Radial Thickness Sheet: 0.4
- Nom. Overall Diameter: 3.9
- No of cores x 18AWG (7 x 26): 2
- Max. DC Resistance Conductor: 20.58
- Capacitance Conductor to conductor: 52
- Nominal Inductance: 0.5
- Max. Operating Voltage: 300
- Operating Temperature: -25 / +75
- Max. Recommended Pulling Tension: 200
- Min. Bend Radius (install): 40
- Nominal Cable Weight: 27.3
